Efficient electric motor for maximum performance

The SANY SY175EW is equipped with a permanent magnet synchronous CRCC electric motor delivering up to 150 kW of power and 1,100 Nm of torque. This gives the machine fast response and powerful operation. The high efficiency allows you to work longer and more productively – completely emission-free.

Battery pack with long operating time and fast charging

Sany battery

The machine is powered by a 400 kWh CATL lithium-ion battery, providing long operating time and minimal downtime. Thanks to fast charging of approximately 1.5 hours, you can quickly get back to work, making the SY175EW a smart choice for contractors who value efficiency and sustainability.

Hydraulic system for precision and power

Sany hydraulic system

The intelligent Rexroth hydraulic system with load-sensing technology provides precise and powerful motion control. With a capacity of 290 l/min and pressure up to 360 bar, you get the strength required for demanding excavation work, while the system optimizes energy consumption.

Stability and mobility in all environments

Sany stability

The SY175EW is built to handle varying ground conditions. The robust chassis, dozer blade, and outriggers provide excellent balance and stability. With a top speed of 30 km/h and a powerful drivetrain, the machine is both agile and strong – perfect for flexible job assignments.

Comfortable cab with smart features

Sany cab

The spacious C12 cab is designed to provide the operator with the best possible working environment. It includes an air-suspended seat, climate control system, 10” color display, and Bluetooth radio. A 360° camera system provides full visibility around the machine, increasing both safety and efficiency.

Top-class lighting and safety

With full LED work lighting, CE certification, and safety features such as travel alarm, emergency stop, and IP67 protection for electrical components, the SY175EW is a safe investment. The machine is built to meet high standards for safety and durability.

Generous warranty for long-term security

We offer up to a 5-year warranty or 10,000 hours on the machine, along with a separate warranty for the battery.

ELECTRIC POWER MEETS MOBILE PERFORMANCE

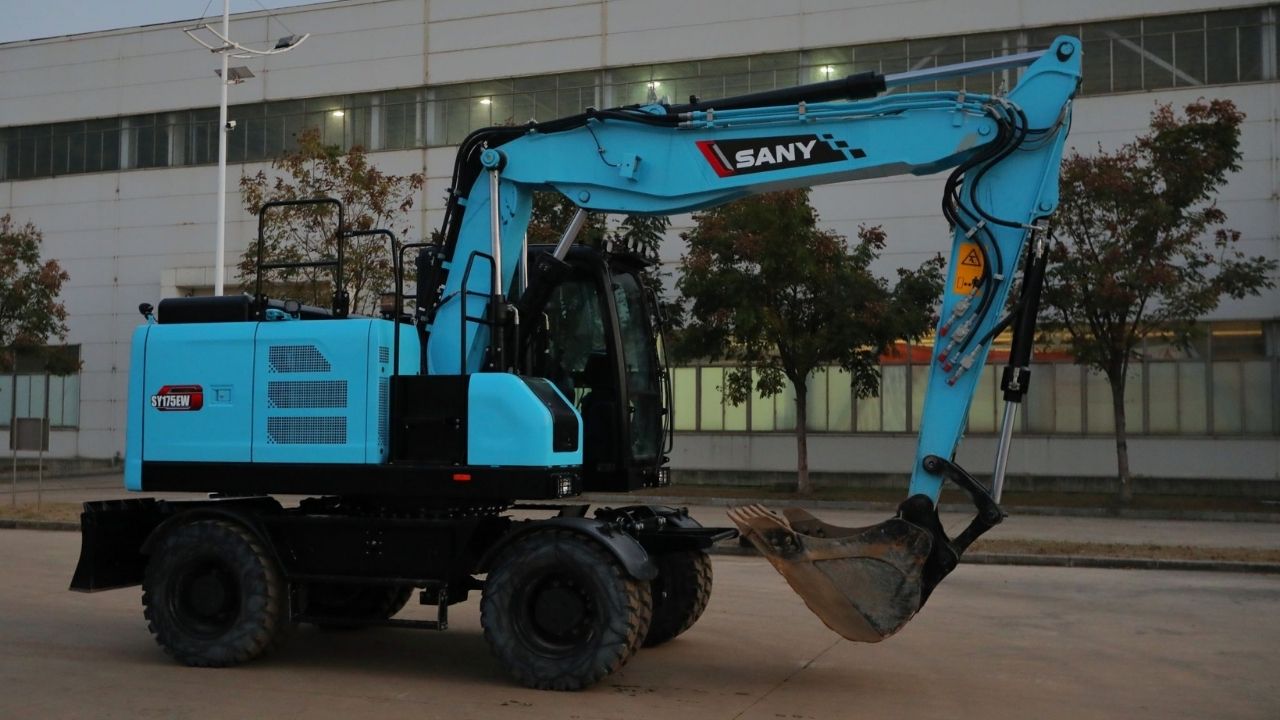

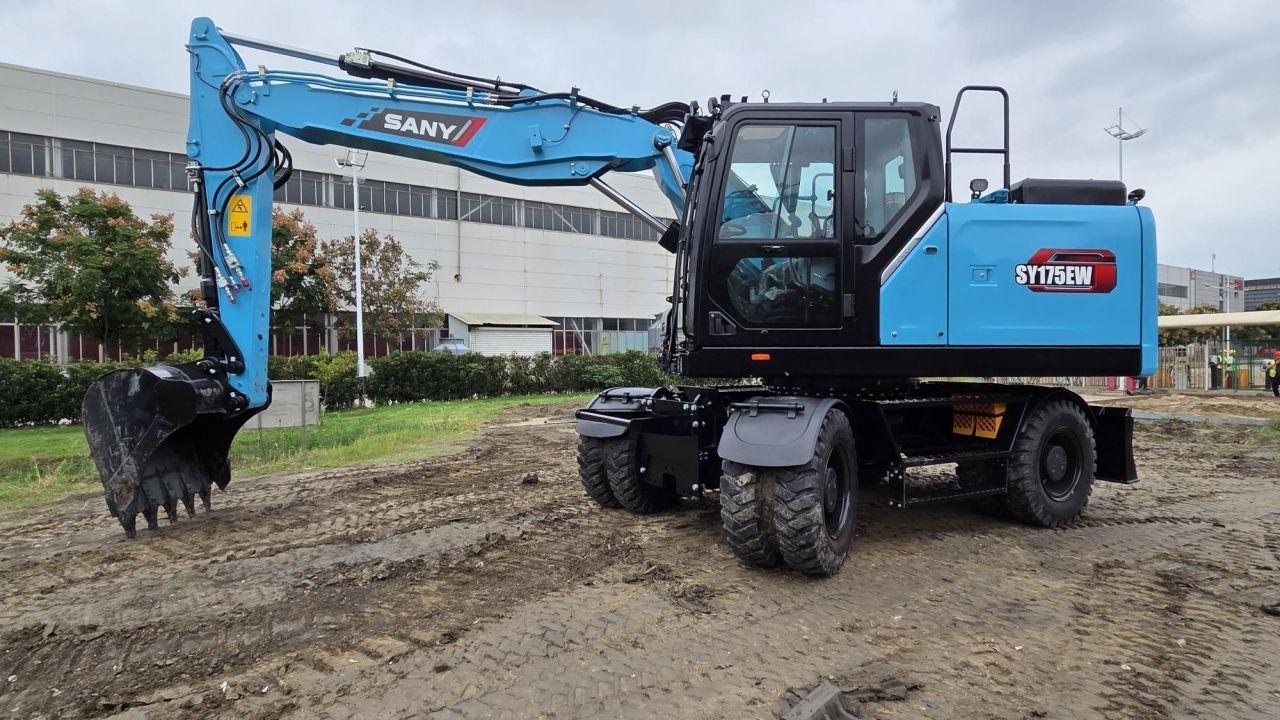

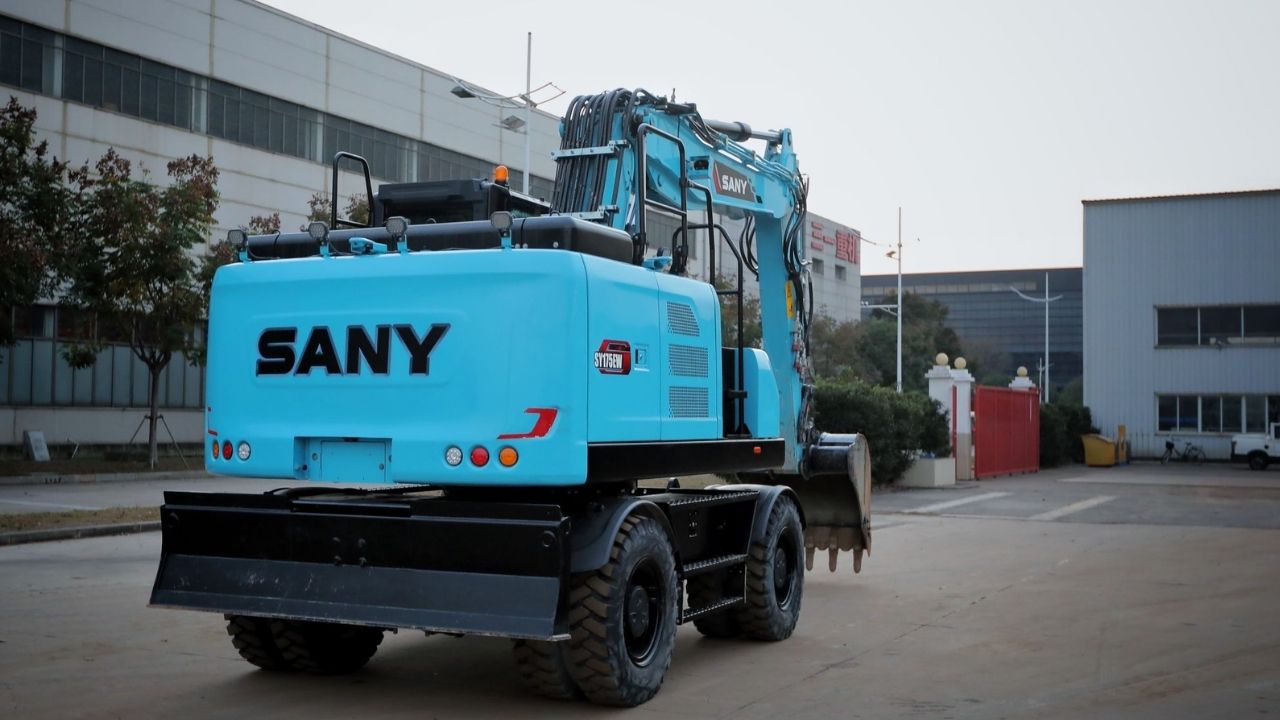

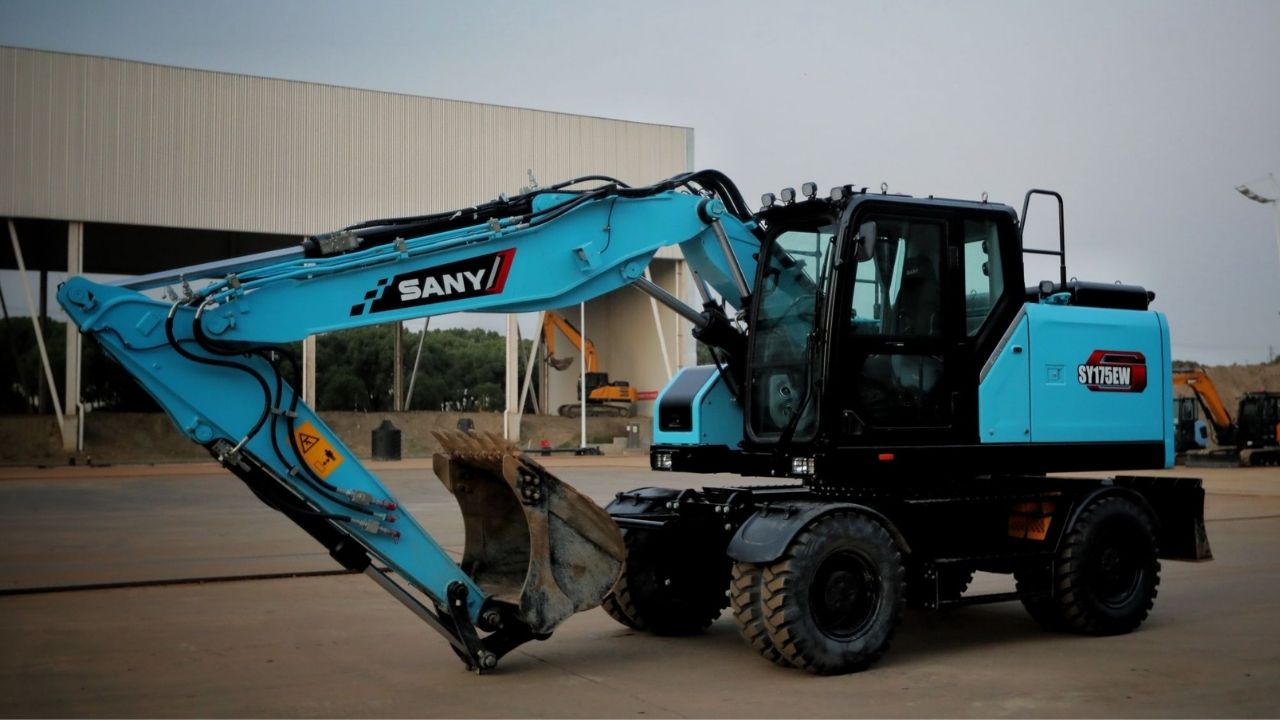

The SY175EW electric wheeled excavator combines strong digging performance with zero-emission operation and low noise, making it ideal for urban construction, municipal projects, landscaping, and roadwork. With its powerful electric drive system, smooth hydraulic control, and stable undercarriage design, it delivers precise, efficient performance while keeping operating costs low. The well-matched components and advanced electric powertrain ensure reliable operation and a comfortable working experience for the operator.

DIMENSIONS

Operating mass

18000 kg

Standard bucket capacity

0.75 m³

Transport length

8340 mm

Transport width

2550 mm

Height over cabin/ROPS

3315 mm

ENGINE / ELECTRIC DRIVE

Type

SANY custom-made PMSM electric motor

Battery type

CATL Lithium Iron Phosphate

Rated power

150 kW / 1790 rpm

Rated torque

800 Nm

Battery capacity

400 kWh

Charging time

≤ 1.5 h

WORKING AREA

Max. digging depth

5540 mm

Max. digging reach

9150 mm

Min. swing radius

2150 mm

Max. digging height

9927 mm

Max. dumping height

7535 mm

HYDRAULIC SYSTEM

Main pump (pressure / flow)

340 bar / 246.5 L/min

Hydraulic oil tank

175 L

Hammer & shear circuit

340 bar / 230 L/min

Hydraulic shear swing circuit

250 bar / 130 L/min

Quick coupler circuit

340 bar / 10 L/min

TRAVEL

Max. travel speed (low)

7.9 km/h

Max. travel speed (high)

20 / 32 km/h

Swing speed

11 rpm

Gradeability

35°

Number of tires

8

Tire size

10.00–20 16PR

Max. steering angle

33°
